Splunk SIEM App

The Splunk SIEM App enables IP lookup from CrowdSec CTI API via custom command called cssmoke. It provides information about the IP, such as what kind of attacks it has been participant of as seen by CrowdSec's network. It also includes enrichment by CrowdSec like background noise score, aggressivity over time etc.

Installation​

The Splunk SIEM App is available in Splunkbase. You can download it from here.

Usage​

  • Get your API key for CrowdSec CTI API by following this guide.

  • Complete the App setup by providing your API Key

The batching option cannot be used with free CTI API keys. Batching allows to query up to 100 IPs at a time and is needed for any larger scale enrichments.

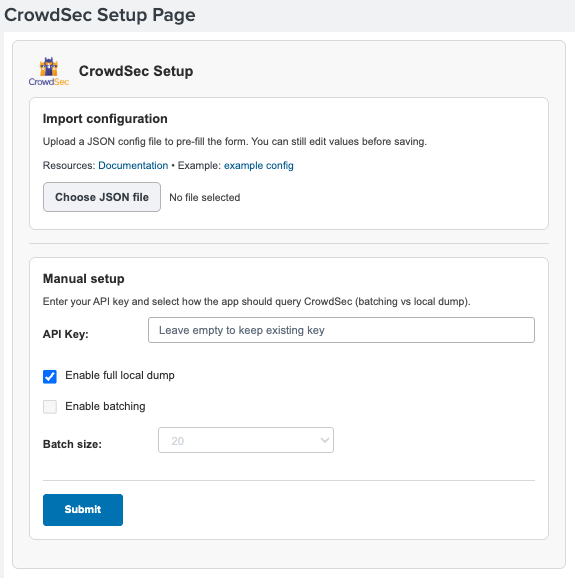

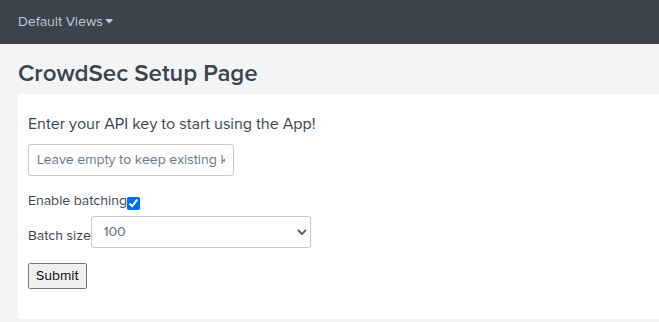

Setup View

  • Test it by running the query | makeresults | eval ip="8.8.8.8" | cssmoke ipfield="ip"

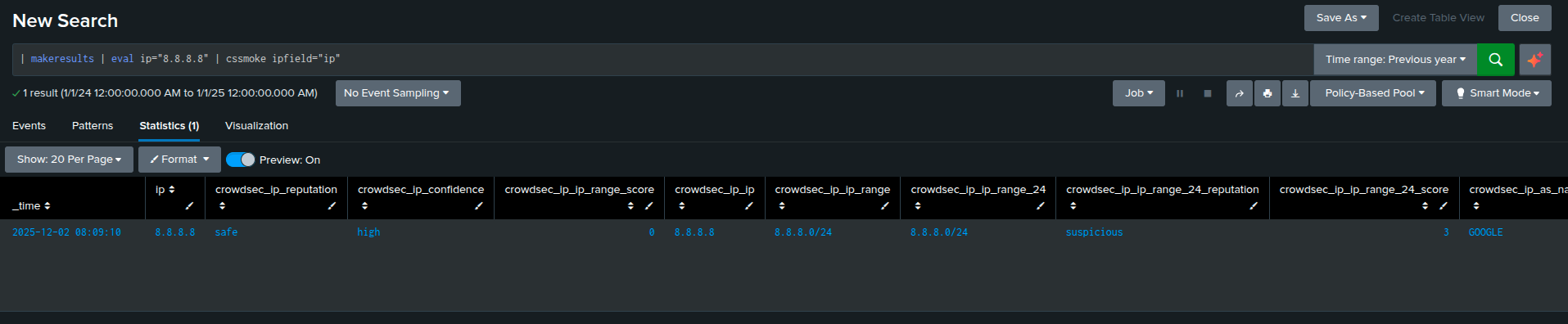

Example Output

Fields filtering​

cssmoke supports a fields argument to restrict outputed fields, separated by commas.

cssmoke ipfield="ip" fields="confidence,reputation,cves"

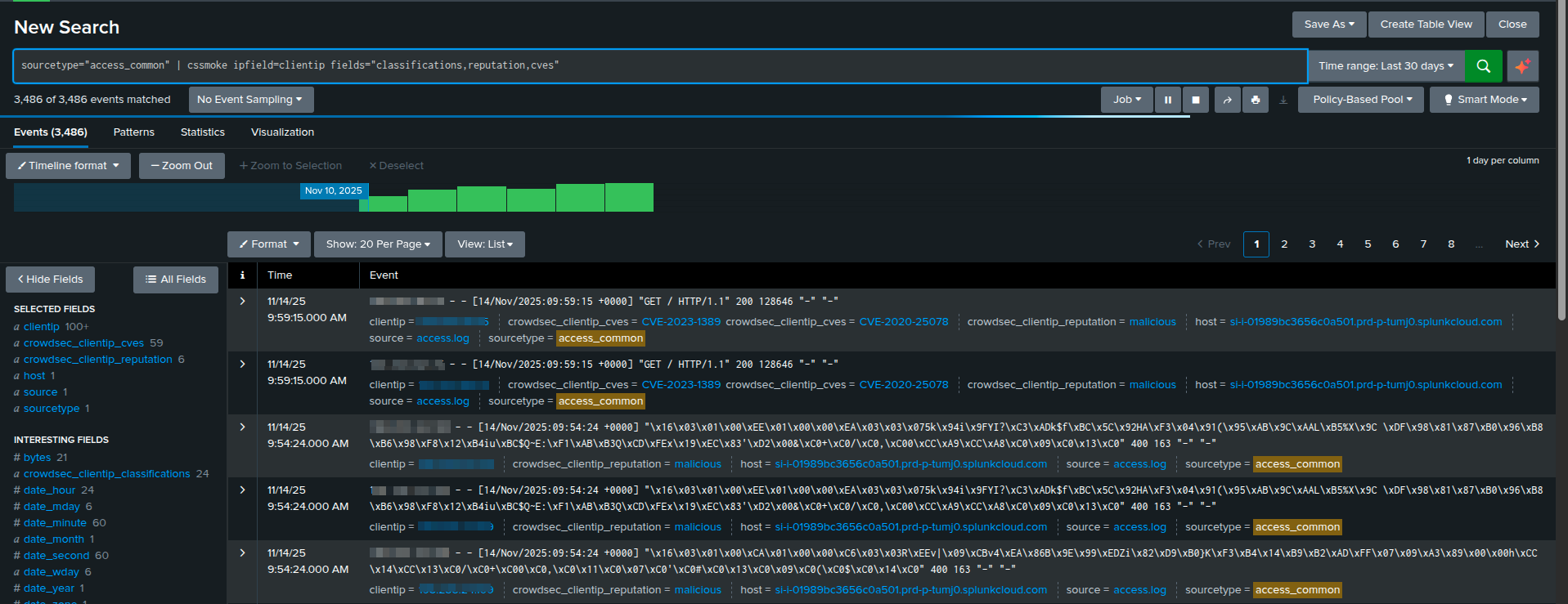

Example Output (2)

Display profiles​

Profiles are optional presets that automatically select a predefined set of CrowdSec output fields, so results stay consistent and you don’t have to manually maintain long ipfield= lists.

  • base: returns ip, reputation, confidence, as_num, as_name, location, classifications.

  • anonymous: (aliases: vpn proxy): returns ip, reputation, proxy_or_vpn, classifications.

  • iprange: returns ip, ip_range, ip_range_24, ip_range_24_score.

You can provide multiple profile in the same command:

| cssmoke ipfield="ip" profile="anonymous,iprange"

The output will contains the columns for the anonymous and the iprange profiles.

Multiple IP fields​

All output fields have the prefix crowdsec_{field}_. For event with multiple IPs (ie. ipsrc, ipdst), the outputs will be in crowdsec_ipsrc_reputation, crowdsec_ipdst_reputation etc.

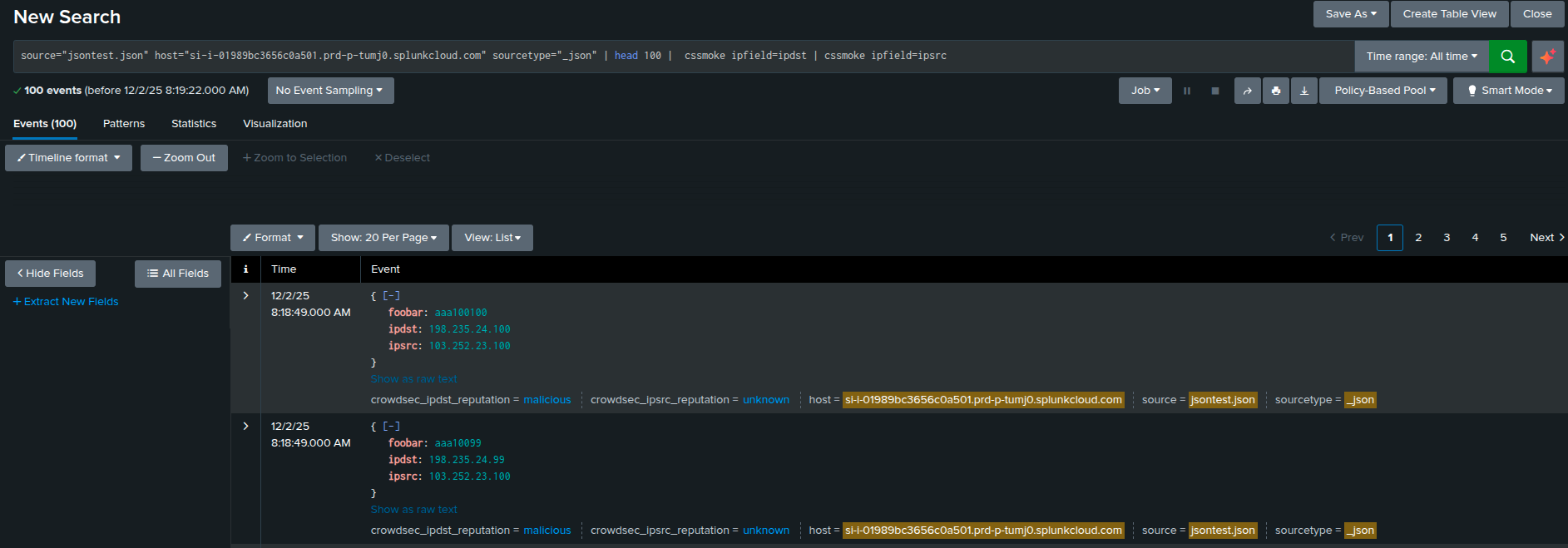

Example Output (3)

Fields containing multiple IP values aren't supported.

Enriched Data​

The following fields are automatically enriched using CrowdSec intelligence:

(Please refer to the CrowdSec CTI API documentation for more details on each field.)

All output fields are prefixed with crowdsec_{field}_.

Reputation & Classification​

  • reputation: IP reputation
  • confidence: Confidence level
  • ip_range_score: The malevolence score of the IP range the IP belongs to
  • ip: Original IP address
  • ip_range: IP range
  • ip_range_24: /24 range of the IP address
  • ip_range_24_reputation: Reputation of the range
  • ip_range_24_score: Score for the range
  • as_name: Autonomous system (AS) name
  • as_num: Autonomous system (AS) number
  • false_positives: Historical false positives
  • classifications: Classifications associated with the IP
  • proxy_or_vpn: Either the IP is a proxy or VPN

Geolocation​

  • country: Country
  • city: City
  • latitude: Latitude
  • longitude: Longitude
  • reverse_dns: Reverse DNS result

Behavioral & Threat Intelligence​

  • behaviors: A list of the attack categories for which the IP was reported
  • mitre_techniques: A list of Mitre techniques associated with the IP
  • cves: A list of CVEs for which the IP has been reported for
  • attack_details: A more exhaustive list of the scenarios for which a given IP was reported
  • target_countries: The top 10 countries targeted by the IP
  • background_noise: The level of background noise of an IP address is an indicator of its internet activity intensity
  • background_noise_score: CrowdSec intelligence calculated score
  • references: A list of the CrowdSec Blockists the IP belongs to

Activity History​

  • first_seen: Date of the first time this IP was reported
  • last_seen: Date of the last time this IP was reported
  • full_age: Delta in days between first seen and today
  • days_age: Delta in days between first and last seen timestamps

Threat Scores Over Time​

Overall​

  • overall_aggressiveness
  • overall_threat
  • overall_trust
  • overall_anomaly
  • overall_total

Last Day​

  • last_day_aggressiveness
  • last_day_threat
  • last_day_trust
  • last_day_anomaly
  • last_day_total

Last Week​

  • last_week_aggressiveness
  • last_week_threat
  • last_week_trust
  • last_week_anomaly
  • last_week_total

Last Month​

  • last_month_aggressiveness
  • last_month_threat
  • last_month_trust
  • last_month_anomaly
  • last_month_total

Offline Replication​

Offline replication lets the app perform CrowdSec CTI lookups without calling the live CTI API for every search. When enabled, the app periodically (every 24h) downloads the CrowdSec CTI database locally (MMDB format) and queries that local database instead of sending requests to the API.

Because the database is an MMDB, lookups can also return network-level intelligence: if there is no exact match for an IP address but reputation data exists for its containing /24 network, the result can still include that /24 information.

The first time you setup the local dump feature, you need to download manually the CrowdSec lookup databases (they will be updated every 24h automatically after that):

| cssmokedownload

After that, you can look up IPs using the local databases.

If an IP address is not found in the local CrowdSec CTI database, the app automatically falls back to the bundled CIRCL (circl.lu) MMDB dataset to enrich the event with at least country and AS/ASN information. This ensures that Offline replication always returns basic geolocation and network owner context, even when CrowdSec CTI has no match for a given IP.

Offline replication requires a CTI API key that has access to the dump endpoint.

You can use profile profile=debug to check the query_time and query_mode fields in the results to confirm whether lookups are done via local_dump or the live API.

Configuration file​

You can configure the CrowdSec app by uploading a JSON configuration file during the setup:

{
    "api_key": "YOUR_API_KEY_HERE",
    "batching": true|false,
    "batch_size": 20,
    "local_dump": true|false
}

api_key​

CrowdSec CTI API key.

Local dump and live CTI API lookups are mutually exclusive (enable only one mode).

batching​

Enable batching for live CTI API lookups.

batch_size​

Batch size used when batching is enabled.

local_dump​

Enable offline replication mode (use the downloaded lookup databases).

Lookup databases are download automatically every 24h.
